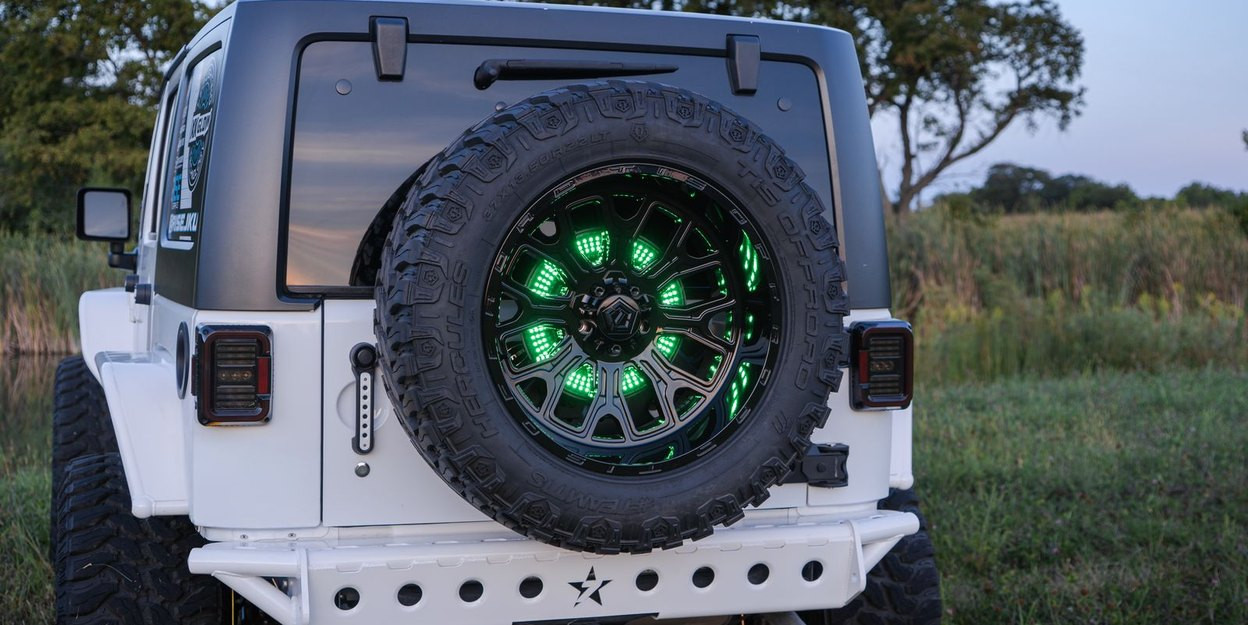

Put a bigger tire on the back of a Jeep and you create a problem you might not notice until someone is braking behind you: the spare blocks the factory third brake light. The taller the tire, the more of that center brake light disappears behind it. A spare tire brake light fixes that by moving the signal out to the wheel itself, where nothing is in the way.
Most of the spare tire lights you will find are a plain red brake ring. They light up when you hit the brakes and that is the end of the feature list. XKGLOW's XKmax 5th wheel light starts from the same safety problem and solves a lot more of it: it runs the full rear signaling suite and doubles as a 216-LED RGBW light show when the Jeep is parked.
Why a Spare Tire Light Is a Safety Upgrade First
The whole reason this product category exists is visibility. A rear-mounted spare, especially a 35 or 37 sitting proud of the tailgate, obscures the high-mount third brake light that other drivers are trained to look for. Restoring a clear brake signal at the back of the Jeep is the point, and it is worth doing before you think about color at all.
XKGLOW's version rings the spare with 216 addressable RGBW LEDs behind a smoked lens, so the ring reads clean and dark when it is off and lights up bright when it is working. Because it wraps the wheel, the signal is large and centered exactly where a following driver is already looking.
The Full Signaling Suite, Not Just a Brake Ring
This is where the XKmax light pulls ahead of a basic red ring. In driving mode it runs a sequential turn signal, brake, running light, and reverse, all synced to your vehicle. The reverse function is the one most spare tire lights skip entirely: XKGLOW's integrated reverse mode lights the wheel in ultra-bright white when you back up, which is genuinely useful on a Jeep whose factory reverse lights sit low and get washed out.
It is built to wire in cleanly, too. It works with vehicles that have an independent brake light, and there is a dedicated brake wire available for setups that run a separate brake circuit. Power draw is modest for what it does: up to 6 watts in driving mode.
An Auto-Switch feature ties it together. The light automatically switches into driving mode the moment it detects a driving signal, so you never have to think about turning the signaling on. When you park and your phone walks away, a configurable Sleep Mode shuts the show off after the Bluetooth disconnects, so it is not sitting there draining anything overnight.
The Show Mode
With the Jeep parked, the same ring becomes an RGBW display. It runs 16 million colors, 28 or more pre-built chasing themes with adjustable colors, patterns, speed, and brightness, plus a DIY builder, and Music and Speed Sync. In RGBW mode it draws up to 16 watts. Like the rest of the XKmax line, it runs from the XKmax app over Bluetooth, so the spare tire ring can share a color and a chase with your rock lights, fender vents, and anything else you have wired in.
Fitment: Jeep and Bronco

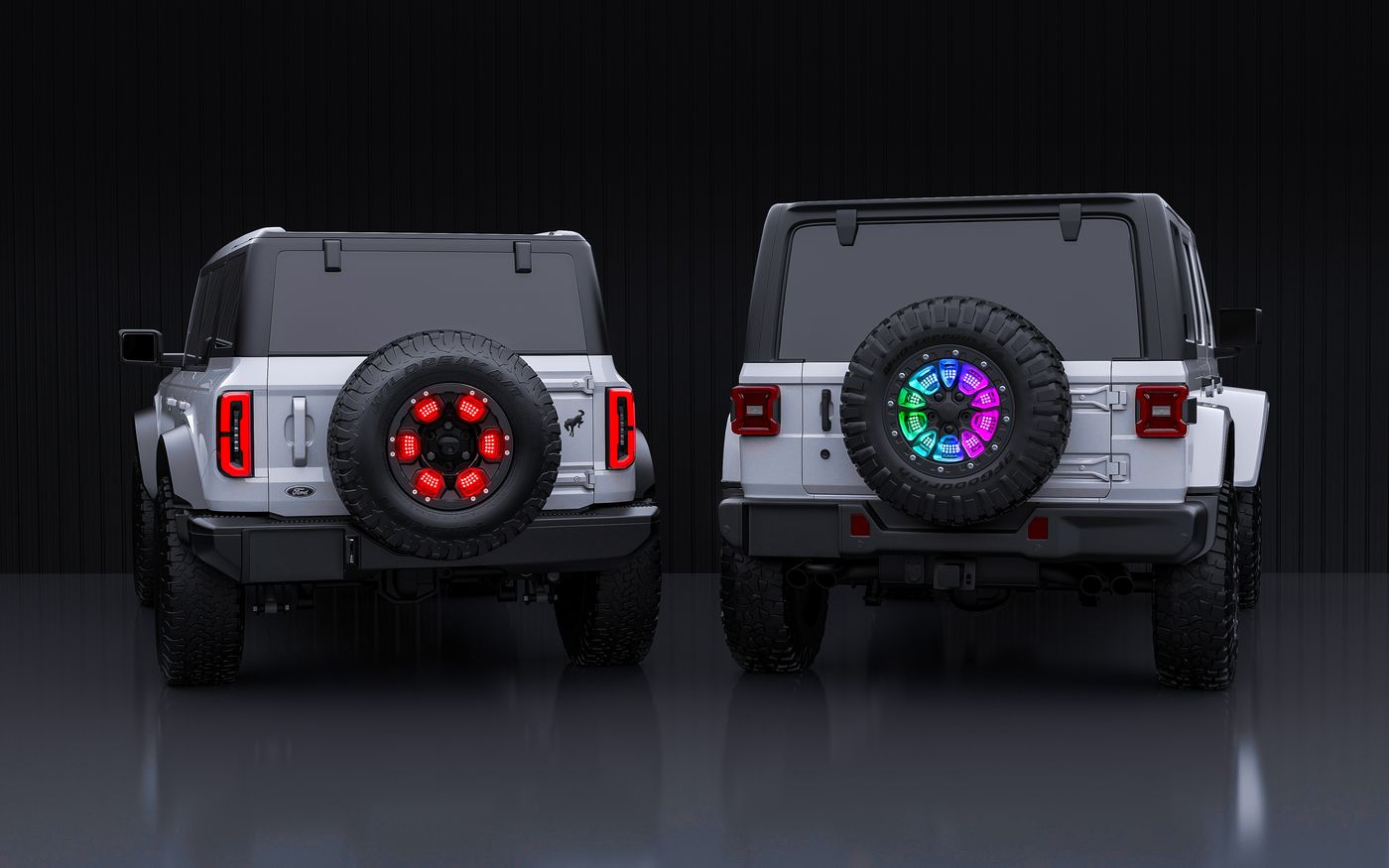

The 5th wheel light comes in two versions: one for the Jeep (MX-5WHEEL) and one for the Ford Bronco (MX-5WHEELB). The Jeep version fits the Wrangler JL, JK, and TJ. The one thing to confirm before ordering is your brake wiring: the light supports vehicles with an independent brake light, and XKGLOW offers a dedicated brake wire for setups that run a separate brake circuit.
Install and Build Quality
XKGLOW rates the install at under an hour, which is quick for a light that does this much, because it mounts to the existing spare tire carrier rather than into the body. The housing is an IP67 waterproof aluminum body, and it uses a second-generation design with a built-in error canceller for error-free operation, which is the part that keeps a modern Jeep from throwing a bulb-out warning when you add LED signaling.
It is backed by XKGLOW's Limited Lifetime Warranty on eligible products, and registration is what activates it. Register the light when you install it.
Where It Fits in the Whole Jeep
A spare tire light is one of the highest-impact upgrades on a 2-door or any Jeep running a big rear tire, because it solves a real safety gap and adds a light show at eye level in the same part. As part of a full build, it runs the same app and the same colors as the rest of your XKGLOW gear. If you are still planning the build, the guide to choosing LED lights for your Jeep lays out where each piece fits. Build yours today.
Frequently Asked Questions
Does a spare tire brake light replace the factory third brake light?
It supplements it. On a Jeep with a large rear-mounted spare, the tire can block the factory third brake light from drivers behind you. XKGLOW's 5th wheel light restores a clear, centered brake signal out at the wheel, and adds turn, running, and reverse functions on top.
Is a spare tire light legal on a Jeep?
Mostly, yes, with a caveat. The signaling side (brake, sequential turn, running, reverse) is designed to sync with your factory signals, which is legal signaling. The RGBW show mode is accent lighting, and color rules vary by state, with red and blue commonly restricted. Check your local vehicle code before running colors on the street.
Will it work with my Jeep's brake wiring?
It works with vehicles that have an independent brake light, and XKGLOW offers a dedicated brake wire for setups that run a separate brake circuit. Confirm your brake wiring before ordering. The built-in error canceller is there to prevent the bulb-out warnings that LED signaling can trigger on a modern Jeep.
Does the light drain the battery when the Jeep is parked?
It is built not to. A configurable Sleep Mode shuts the show off after your phone's Bluetooth disconnects, and the Auto-Switch feature only wakes the light into driving mode when it detects a driving signal. Draw is up to 6 watts in driving mode and up to 16 watts in the full RGBW show.
Can I control it with the same app as my other XKGLOW lights?
Yes. The 5th wheel light runs on the XKmax app, the same app that controls XKGLOW's rock lights, fender vents, and other XKmax gear, so the spare tire ring shares a color and a chase pattern with the rest of the build instead of running on its own.
