Your Cybertruck headlights are not the glowing bar across the nose. That bar is a daytime running light, and the real beams sit in separate lamps lower down. Mix the two up and you buy the wrong part, wire it into the wrong place, or leave show settings on at a stoplight.
XKGLOW does not sell a replacement headlamp or front light bar for the Cybertruck. Its Cybertruck line adds to the factory setup: a dual-mode roof light bar, accent kits, a switch panel, and a 48V converter.
Mistake 1: Treating the Light Bar as Your Cybertruck Headlights
The full-width bar is the daytime running light. The high and low beams, plus the turn signals, sit lower, just above the bumper. Tesla's service manual lists them as separate parts: the front lightbar bolts to the powergate, and each headlamp is its own assembly. Replacing a headlamp starts with removing the frunk assembly and ends with re-aiming the lamp, so it is a service procedure, not a plug-in upgrade.
Owners also report ice packing the ledge under the real headlamps. XKGLOW's own Cybertruck guide says a secondary light source becomes vital in colder regions. That is a job for an add-on, not for tearing into the front end.
Mistake 2: Trusting the Daytime Running Lights After Dark
Tesla sets exterior lights to Auto every time you start the truck, and Auto switches them on in low light. Choose Off and the daytime running lights can stay lit, so the front still looks alive. Tesla's manual warns that the tail lights are off while the daytime running lights are on. It tells you to make sure the headlights and tail lights are On when it is dark, foggy, snowy, or wet.
Trust the headlight indicator on the touchscreen, not the glow up front.
Mistake 3: Powering Lights From the Wrong Place
The Cybertruck runs a 48V low-voltage system. Tesla gives you two power feeds for accessories, one on the roof and one in the frunk, each rated at 400 watts maximum. Tesla calls them the only points where you can connect accessories directly. It warns that using any other low-voltage wiring to power accessories can cause unpredictable results, such as a total loss of power steering.
That rules out the usual 12V shortcut of borrowing power from a headlamp or running-light wire. XKGLOW's roof bar connects to the roof feed and lists a 300-watt maximum, so add up your watts before you put a second accessory on that feed. A feed cuts power when current exceeds its limit.
Splicing into a feed has its own traps. Check these before you power up:
- Polarity. On the roof feed, positive goes to the red wire with a blue stripe and ground to the black wire with a blue stripe.
- Insulation. Tesla wants every splice taped or heat-shrunk.
- Battery drain. Leaving an accessory powered depletes the high-voltage battery, and Keep Outlets On is the setting that keeps a feed live after you walk away.
On a 2025 or newer truck, the roof feed may come without a harness. Tesla says trucks built after about April 2025 do not have one. XKGLOW's roof bar page warns that a truck without the factory options may need the roof applique for crossbars and Tesla's roof accessory jumper harness (part 1866224-00-F). Tesla says tapping a feed is for knowledgeable, experienced people, and XKGLOW's manual recommends a licensed professional.
Mistake 4: Running 12V Hardware on a 48V Truck
XKGLOW's Cybertruck guide also warns that some brands repurpose generic 12V bars and relabel them for the truck. XKGLOW's warranty excludes damage from incorrect voltage or improper wiring. The fix is hardware built for 48V, or a converter sized for the load. Read the input voltage line before you buy: XKGLOW's roof bar lists a 48V input, and a listing that shows 12V needs a converter in the box.
| Product | How it handles 48V | App |
|---|---|---|
| Roof light bar | Native 48V input, no converter | XKmax |
| Atomix profile strips, underglow, interior fiber optic | Converter included in each kit | XKmax |

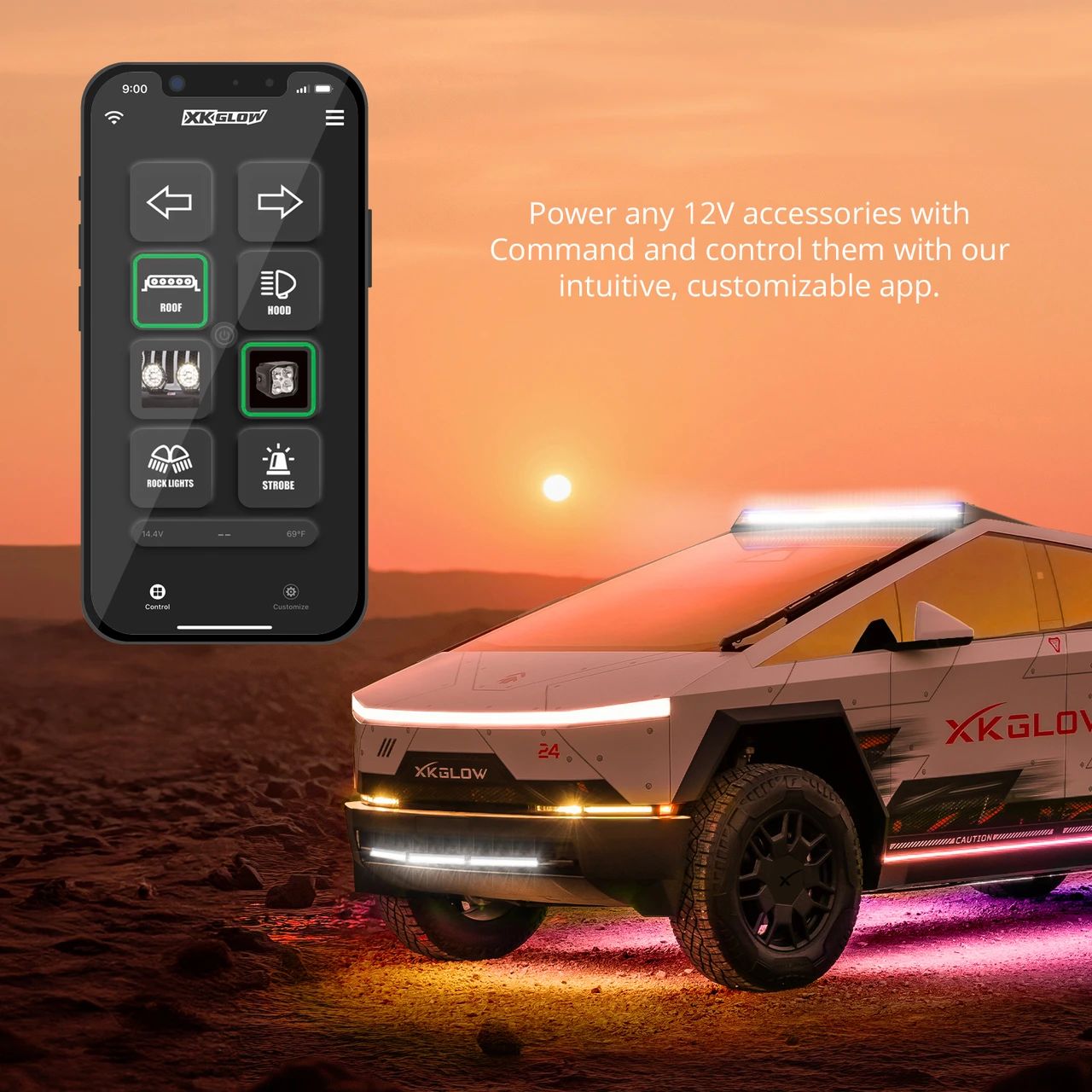

| XKcommand switch panel | Includes a 48V-to-12V converter | XKcommand |
| 48V to 12/24V converter | Steps 48V down to 12V at 30A or 24V at 15A | None |
The panel runs your 12V accessories through eight 15A outputs, each with its own resettable fuse, and it answers to the XKcommand app. The bar and the accent kits answer to XKmax, so a build that uses all of them runs two apps. One more Cybertruck limit: the underglow kit page says its brake and turn-signal sensor wires are not compatible with the truck. Do not count on it following your signals.
Mistake 5: Running Show and Trail Settings on the Street

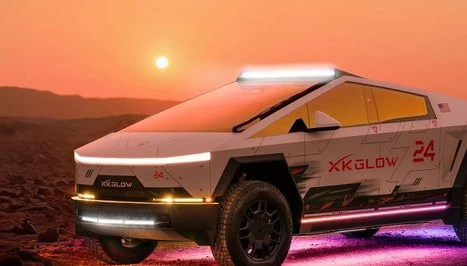

The roof bar has two modes, and you switch between them in the XKmax app. Light Bar mode is a driving beam, and XKGLOW lists the bar's maximum output at 30,102 lumens. DRL mode runs RGB and pure white LEDs, so it shows whatever color and chase pattern you set. The bar wakes up in DRL mode, and you can change that default in the app under Config, then Default Mode.
Neither mode replaces the headlights. Tesla's own roof bar is designed only for off-road use, and Tesla fits blackout film over it before delivery. The federal lamp standard, FMVSS 108, calls for white headlamps, amber front turn signals, and daytime running lamps in white through yellow that burn steadily. A chase pattern is not a steady burn, and any other color showing from the front is usually illegal on a public road, roof lights included.
Brightness has a ceiling too. In October 2025 Tesla recalled 63,619 Cybertrucks because software could push the front parking lamps past the maximum intensity FMVSS 108 allows, and fixed it over the air. XKGLOW's roof bar page makes no DOT claim, and its manual tells you to check your local and state laws.
Keep Light Bar mode, color modes, and chase patterns for the trail or a private car show. Driving on with illegal lighting can bring higher penalties and even registration revocation.
Answer Three Questions Before You Pick Hardware
The Cybertruck splits its front lighting in two and runs on 48V, and street rules apply to every lamp you add. Each mistake above is a way of forgetting one of those three facts. Settle them first: which lamp is doing the lighting, where the power comes from, and what each setting may do on a public road. Then pick hardware that fits your answers.
When you reach the hardware question, pick Tesla Cybertruck headlights with these mistakes in mind, and the Cybertruck lighting upgrade guide maps the rest of the build. Build yours today.
Frequently Asked Questions
Where are the headlights on a Cybertruck?
The high and low beams sit in separate lamps low on the front end, just above the bumper. The full-width bar across the nose is a daytime running light, not the headlights. Check the headlight indicator on the touchscreen to see which lights are actually on.
Why do Cybertruck headlights get blocked by snow?
The real headlights sit in a recessed slot just above the bumper, and snow and ice pack onto that ledge in front of them. Brush it clear before you drive at night. The bar across the top is only a daytime running light, so it does not replace them.
Are aftermarket light bars legal on a Cybertruck?
It depends on the setting and your state. Tesla designs its own roof bar only for off-road use. FMVSS 108 makes road headlamps white and daytime running lamps white through yellow, and any other color showing from the front is usually illegal on public roads. Check your vehicle code first.
Does a Cybertruck use 12V or 48V for accessories?
48V. Tesla provides two accessory power feeds, one on the roof and one in the frunk, each rated at 400 watts maximum. They are the only direct connection points Tesla allows. XKGLOW's roof bar takes 48V natively, and its accent kits include a converter.
Do Cybertruck headlights turn on automatically?
Yes, by default. Tesla sets exterior lights to Auto every time you start the truck, and they switch on when it gets dark. If you pick Off, the daytime running lights can stay on while the tail lights are off, so check the touchscreen indicator in poor visibility.
