Posted 10.23.26 in Tips & Instructions
Park a Gladiator beside a Wrangler and the first thing you notice is the length. For rock lights, that length means bigger gaps: spread the same pods down a Gladiator JT and they land farther apart. Jeep Gladiator rock lights have to cover the whole truck. XKGLOW's XKmax RGBW rock lights scale to it with 8 and 12-piece kits, pods that daisy-chain up to 30, and one app running every pod.
What a Gladiator's Longer Frame Does to Rock Light Coverage
The Gladiator is a four-door truck with a bed that measures 60.3 inches at the floor, and the tape measure shows it. Its wheelbase is 137.3 inches, against 118.4 on a four-door Wrangler JL and 96.8 on a two-door. Overall length is 218.0 inches, 29.6 more than the four-door JL, and 18.9 of those inches sit between the axles.
That wheelbase decides your coverage. Put one pod at each wheel and the whole wheelbase sits between them. That is 11.4 feet of unlit rail per side on a JT, against 9.9 feet on a four-door Wrangler and 8.1 on a two-door. Past the rear wheel, the end of the bed and the hitch add a stretch of their own.
The rock lights buyer's guide sizes the 4-piece kit for a two-door Wrangler and the 8-piece for a four-door. A JT starts at the 8-piece and steps up to the 12 for tighter coverage.
Jeep Gladiator Rock Lights: Which XKmax Kit Fits a JT
XKGLOW sells the XKmax RGBW LED Rock Light Kit in three sizes. Every pod has an aluminum housing, a reinforced polycarbonate lens, and an IP67 waterproof rating. The LEDs are addressable RGBW with a dedicated pure white LED, so one pod gives you 16 million colors and a clean white. The kit is universal fit, which means the same pods go on a JT, a JL, or a pickup, and the pod count is what changes.
The last column shows the gap between neighboring pods on one side, spread evenly from the JT's front wheel to its rear wheel.
| Kit | Controller | Key fob | Price | JT pod gap |
|---|---|---|---|---|
| 4-piece Standard | 2-channel | Add-on | $287.99 | 137 in |
| 8-piece Advanced | 2-channel | Add-on | $443.99 | 46 in |
| 12-piece Pro | 4-channel | Included | $599.99 | 27 in |
The 4-piece works as a wheel-well accent on a JT and little else. The 8-piece puts a pod every 46 inches, against about 39 on a four-door Wrangler. The 12-piece closes the JT's gap to 27 inches, near the 24 a four-door Wrangler gets from the same kit.
Step from the 8-piece to the 12-piece and you pay $156.00 more for four pods, the key fob, and the 4-channel controller. A 4-pack of add-on pods alone lists at $215.96. Starting with the 4-piece and adding two 4-packs reaches twelve pods for $719.91, so if you know the JT needs twelve, the $599.99 kit costs $119.92 less.
Where the Pods Go on a Gladiator
Think of each side as three stretches, front to back: the front wheel well, the rail under the doors, and the rear wheel well. Per side, the kits fill them like this:
- 4-piece: a pod in each wheel well and nothing between them.
- 8-piece: a pod in each wheel well and two along the doors.
- 12-piece: a pod in each wheel well and four along the doors.
None of those layouts leaves a pod for the stretch behind the rear wheel, and a JT has a bed and a hitch back there. The 8-piece cannot spare one, because three pods across the wheelbase would sit 69 inches apart. A 2-pack of add-on pods at the rear bumper corners lights the hitch for $107.98. The 12-piece can spare one: slide the last pod on each side back to the bumper and the rail gap widens from 27 inches to 34.
Zone the rear pods separately in the XKmax app. Set them to the pure white LED when you are hitching up after dark, and let the rails keep chasing color down the length of the truck.
Where each pod mounts depends on your trim and any armor you run. Tape every pod in place and run the chase patterns before you drill. The rock light install walkthrough covers the order, and the steps carry over to a JT.
Control, Wire Reach, and Room to Grow
Every pod answers to the XKmax app over Bluetooth and to a 4-button key fob you can program for quick access. The app holds 28-plus pre-built chasing themes you can adjust for color, pattern, speed, and brightness, plus a DIY builder. One controller runs up to 10 zones, and sync follows music, vehicle speed, or acceleration. Three programmable sensor wires tie the pods to turn signals, brakes, or courtesy lighting, and the controller takes firmware updates.
A long truck stretches the wiring too. A JT's axles sit 18.9 inches farther apart than a four-door JL's, and every inch of that is more wire between the front of the truck and the rear pods. Measure from the controller to your farthest pod before you order. The product page sells extra wire in three lengths, plus 1-to-2 splitters for chains that need to branch.
| Extra wire | 2-pack | 4-pack |
|---|---|---|
| 3 ft | $14.38 | $28.76 |
| 6 ft | $19.18 | $38.36 |
| 13 ft | $40.78 | $81.56 |
When you outgrow the kit, add pods. They daisy-chain, and one XKmax system expands up to 30. A channel's rating is 60 watts, so spread the pods until no single channel goes over it. When a channel is full, spread pods across channels, and the product page offers a $24 upgrade to the 4-channel controller.

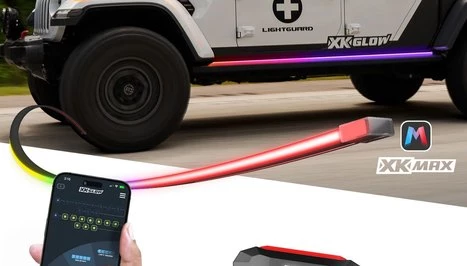

The XKmax grille pods, fender vents, and Atomix body strips run from the same app and key fob. The Jeep LED lights guide shows where each one goes.
Build the Kit That Fits Your Gladiator
Buy the 4-piece for a JT and the gap is the first thing you see in the dark. Pick the build by how much of the truck you want lit:
- Rails: the 8-piece Advanced at $443.99, or $551.97 with the rear 2-pack for the hitch. Add the key fob for $16.79 if you want remote control.
- Rails and hitch: the 12-piece Pro at $599.99, with the last pod on each side at the bumper and the key fob included.
- Full wrap: the 12-piece plus the rear 2-pack, $707.97 for fourteen pods, with room for sixteen more on one system.
Plan on 2 to 3 hours for the install, then register the kit and check the product page for its warranty terms. Build yours today.
Frequently Asked Questions
How many rock lights should you get for a Jeep Gladiator?
Eight to cover the rails, twelve for tighter spacing. A Gladiator's 137.3-inch wheelbase spreads an 8-piece kit to about 46 inches between pods on each side, and a 12-piece tightens that to about 27. A 4-piece kit lights the wheel wells and leaves the rail between them dark.
Is 12 rock lights enough for a Jeep Gladiator?
Yes, for the full length of the rails. Twelve pods give you six per side, about 27 inches apart from the front wheel to the rear wheel. Slide the last pair back to the bumper to light the hitch, or add a 2-pack. XKGLOW caps one XKmax rock system at 30 pods.
Where do you mount rock lights on a Jeep Gladiator?
Low along the frame rails and rocker guards, in the wheel wells, and under the bed toward the hitch. Tape each pod in place and run the chase pattern before you drill. Trim level and armor change what you can reach, so check what sits behind every panel.
What are the best rock lights for a Jeep Gladiator?
XKGLOW's XKmax RGBW kit in the 8 or 12-piece size is the pick for most JTs. The best Jeep Gladiator rock lights cover the full wheelbase and run from one app. XKmax does both, with addressable pods, 10 zones from one controller, and a chain that expands up to 30 pods.
Can you legally drive with rock lights on?
It depends on your state. Rock lights sit low and aim down, but states set their own rules on colors, flashing, and extra lights visible from the road. Check your vehicle code before you drive with color on, and save the full show for trails, lots, and meets.
