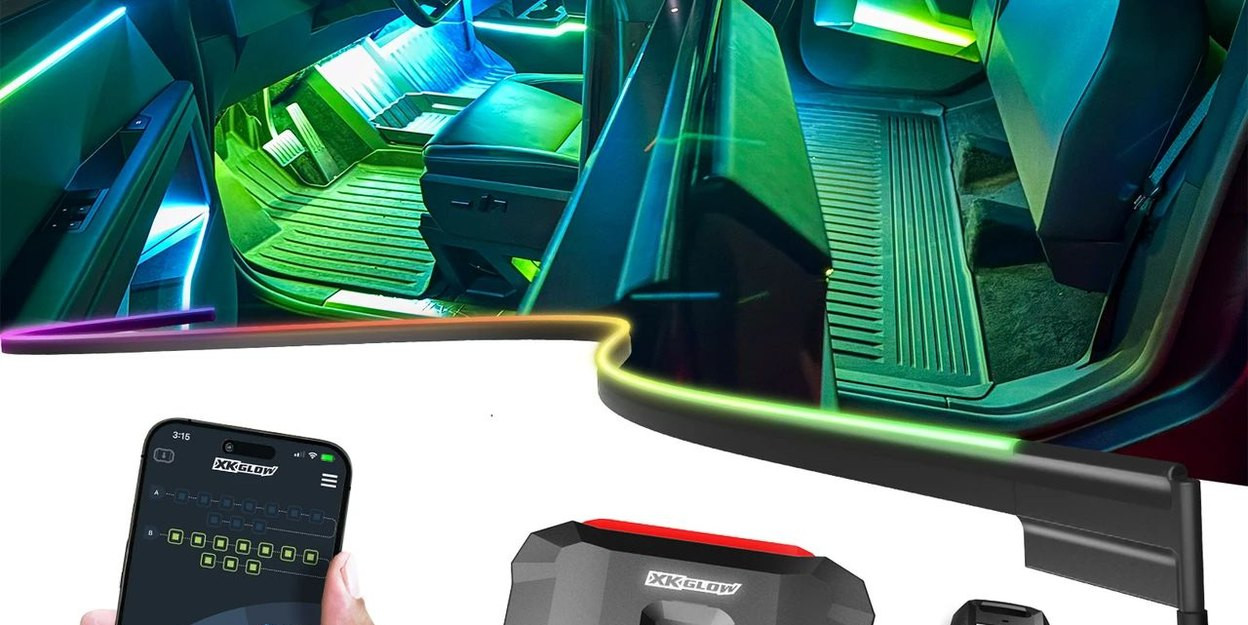

A JK can wear rock lights and a lit grille, then open its door onto a black floor. Jeep JK footwell lights fix that with a low wash of color under the dash and seats. It is the detail a passenger notices the second the door opens.
XKGLOW sells a set built for the job: the Footwell Package for its XKmax ULTRA interior kit, four 10-inch LED strips for $140. The XKmax app sets the color, and a courtesy-light trigger can start a welcoming glow as you get in or out.
Why the Footwell Needs Its Own Strips
XKGLOW's fiber-optic interior kit comes in four sets named Dash, 2 Doors, 4 Doors, and Dash + 4 Doors. None is named for the floor, and a fiber-optic line is made to be seen. Our guide to Jeep interior LED lights covers that kit in full.
Footwell lighting asks for the opposite: color on the floor, with no bright line at knee height. XKGLOW's own write-up of the ULTRA kit says fiber-optic strips give a directly visible glow while LED strips are installed out of sight. The ULTRA page puts the fiber-optic strips on interior body panels and the flexible LED strips in footwell and door pockets.
Jeep JK Footwell Lights From XKGLOW: The Footwell Package
The package is an upgrade on the ULTRA interior kit (MX-FO-ULTRA), which lists at $499.99 for a base set covering four doors and the dash, key fob included. The Footwell Package adds $140, so the full order runs $639.99.
XKGLOW's write-up puts the front row under the dashboard for the driver and passenger footwells and the rear row under the front seats. The wiring diagram in the ULTRA instructions runs all four strips on one controller channel, channel D: two front strips on 6-foot wires and two rear strips on 13-foot wires. The base kit's own four 10-inch strips go in the door pockets, so the package is a separate four.
XKGLOW lists one install time on the ULTRA page, more than 4 hours, with no separate figure for the package. Prices are from XKGLOW's product pages at the time of writing.
Pick Your Route and Price
Three routes put 10-inch strips on a JK floor: the package, or the 10-inch strips XKGLOW sells separately.
| Route | What you buy | Price |
|---|---|---|
| ULTRA + Footwell Package | MX-FO-ULTRA base kit plus four footwell strips, RF key fob | $639.99 |
| Fiber-optic set + strips | Dash set (MX-FO-MINI, two 30-inch dash strips) plus 2 or 4 10-inch flex strips | $239.97 or $287.95 |
| Strips for a kit you own | One 10-inch Slim Flexible RGBW strip (MX-S-10) | See the product page |
Every route runs on an XKmax controller. The kits include one, and XKGLOW limits the standalone strip to XKmax Series products and tells you to check your original kit before buying.
Which Footwell Strip Is RGBW
RGBW adds a dedicated white LED to red, green, and blue, and not every XKGLOW interior strip carries it. The Slim Flexible RGBW LED Light Strip lists 16 million RGB colors with that white LED, a dual-tone silicone rubber housing, and IP67-rated waterproof connectors. Check the product page for its lengths and prices.
The fiber-optic strips are listed as addressable RGB. The ULTRA page offers the 10-inch size as an add-on under the RGBW name but does not label the strips inside the Footwell Package, so the RGBW label sits on the standalone strip.
Two-Door or Four-Door: Count the Footwells
The JK covers the 2007 to 2018 model years, as a two-door and as the four-door Wrangler Unlimited. XKGLOW's interior kit pages name no Jeep model, and the ULTRA page is written for any four-door vehicle, so a JK Unlimited matches the description.
A four-door JK has four footwell spots, which matches the four strips in the package. A two-door JK has the front pair plus the rear seat floor, and the fiber-optic page sells 10-inch flex strips in twos and fours. Slide the front seats all the way forward and check the floor under them before you commit to the rear pair.
Strips on a door leave with the door. Footwell strips ride under the dash and seats, so they stay put when the doors come off.
Door Triggers, App Color, and the Key Fob

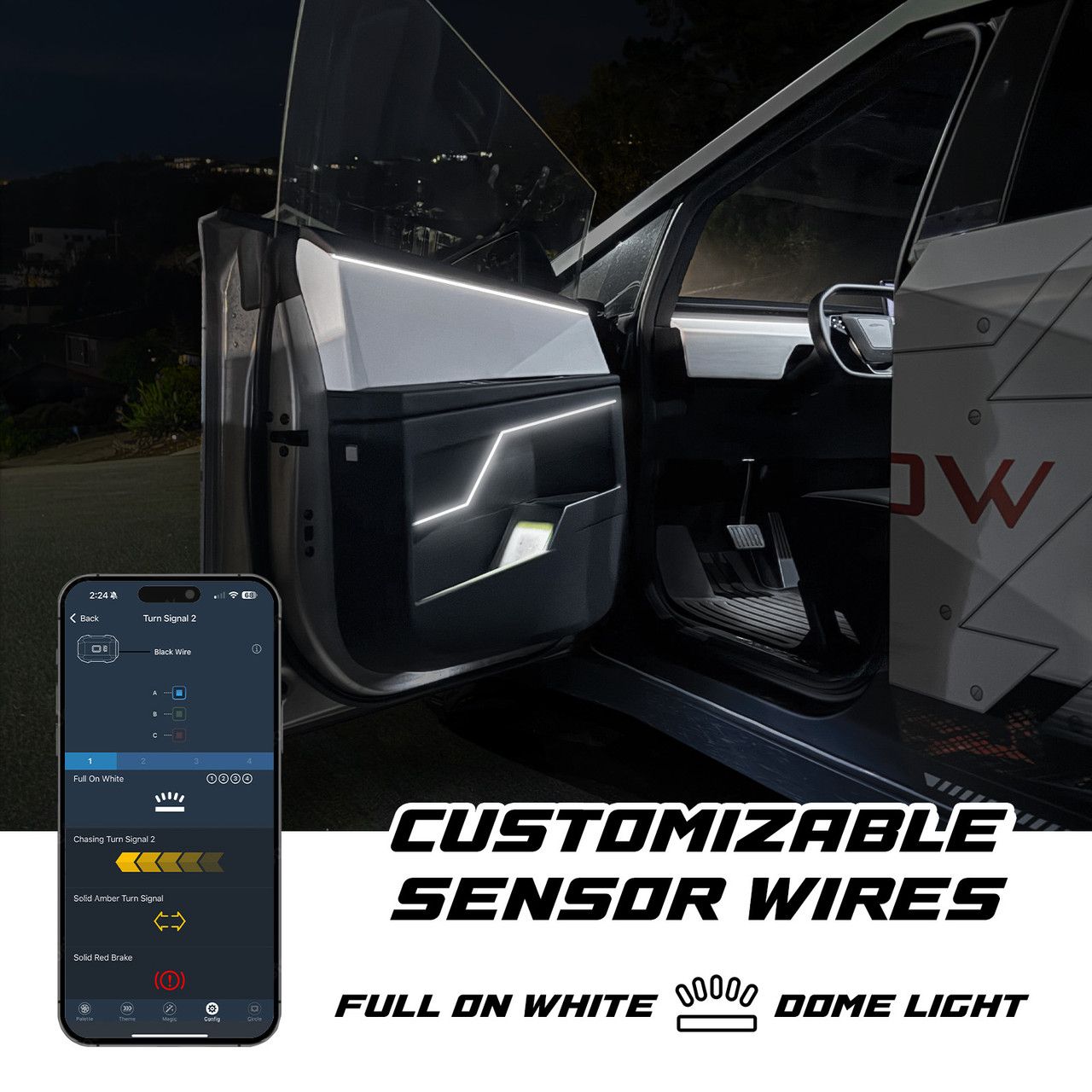

Footwell lights earn their place when they come on with the door. The ULTRA page lists sensor-activated functions that tap into door or courtesy lights to trigger a welcoming glow. The kit's mounting instructions add that no sensor wire action is preset: you set it in the XKmax app, then use the supplied T-tap connectors on a 12V trigger wire.
Confirm that wire with a multimeter before you tap it. The fiber-optic page names turn-signal sync for its sensor wires, while the ULTRA page is the one that names door and courtesy lights.
The XKmax app handles color over Bluetooth. The fiber-optic page lists 28 or more pre-built chasing themes, a DIY builder, and Music and Speed Sync, and the ULTRA page lists up to 10 independent lighting zones. The ULTRA kit includes an RF remote key fob, while the fiber-optic kit sells the 4-button fob as a $16.79 option.
Install Notes for a JK Floor
XKGLOW rates the fiber-optic kit at 1 to 6 hours, and both kit pages point to an installer through the dealer locator. The floor adds three rules:
- Plug the strips into the channel the diagram shows. The ULTRA instructions say each channel is preset for the lights in the diagram, and that straying from the layout may stop some lights from working.
- Route every strip and wire clear of the pedals and the seat rails, and away from anything that moves when you adjust the seat.
- Seal every connection. A footwell takes wet boots and, with the top off, rain. XKGLOW lists IP67-rated waterproof connectors on the slim strip, and its warranty page excludes water intrusion caused by incorrect installation or sealing.
Warranty on the Kits and Strips
The ULTRA kit shows a 5 Year Warranty badge, and the slim strip page shows a Lifetime Warranty badge. Check the fiber-optic kit's product page for its warranty terms. XKGLOW's warranty page says the term on the individual listing takes precedence, so read the badge on the page you buy from. Coverage requires proof of purchase and a proper install, and it does not cover labor for removal or reinstallation. XKGLOW has you register products to activate coverage.
Build Out the Rest of the Jeep
XKmax rock lights use the same Bluetooth app control and 4-button key fob, so a build can start on the floor and finish at the wheels.
Count your doors first. A four-door JK with a full-cabin plan fits the ULTRA kit and the Footwell Package at $639.99, and a smaller plan fits a fiber-optic set with 10-inch strips. Our guide to choosing LED lights for your Jeep shows where those pieces sit in the full build. Build yours today.
Frequently Asked Questions
Do XKGLOW footwell lights fit a Jeep JK?
They can, but XKGLOW names no Jeep model on the page. The ULTRA kit is written for any four-door vehicle, which includes a JK Unlimited. The fiber-optic page describes a snug fit for any car or truck interior. Measure your footwells before you order.
How many strips light every footwell in a four-door JK?
Four 10-inch strips, the number in XKGLOW's Footwell Package. XKGLOW's wiring diagram shows two front footwell strips on 6-foot wires and two rear footwell strips on 13-foot wires, all on channel D. XKGLOW's write-up puts the rear pair under the front seats.
Can Jeep JK footwell lights come on when the door opens?
On the ULTRA kit, yes, with setup. XKGLOW lists sensor-activated functions that tap into door or courtesy lights, and its instructions have you set the action in the XKmax app and T-tap a 12V trigger wire. Test that wire with a multimeter first.
How much do XKGLOW footwell lights cost?
The ULTRA kit lists at $499.99 and the Footwell Package adds $140, so $639.99 with the key fob included. The cheaper route is the $191.99 Dash fiber-optic set plus two 10-inch strips at $47.98. Prices are from XKGLOW's product pages at the time of writing.
Are Jeep footwell lights waterproof?
XKGLOW lists IP67-rated waterproof connectors on its slim flexible strip. The ULTRA page captions an image "Updated waterproof connectors" but gives no IP rating. The warranty excludes water intrusion from incorrect installation or sealing, so seal every connection and keep the wiring off the floor.
